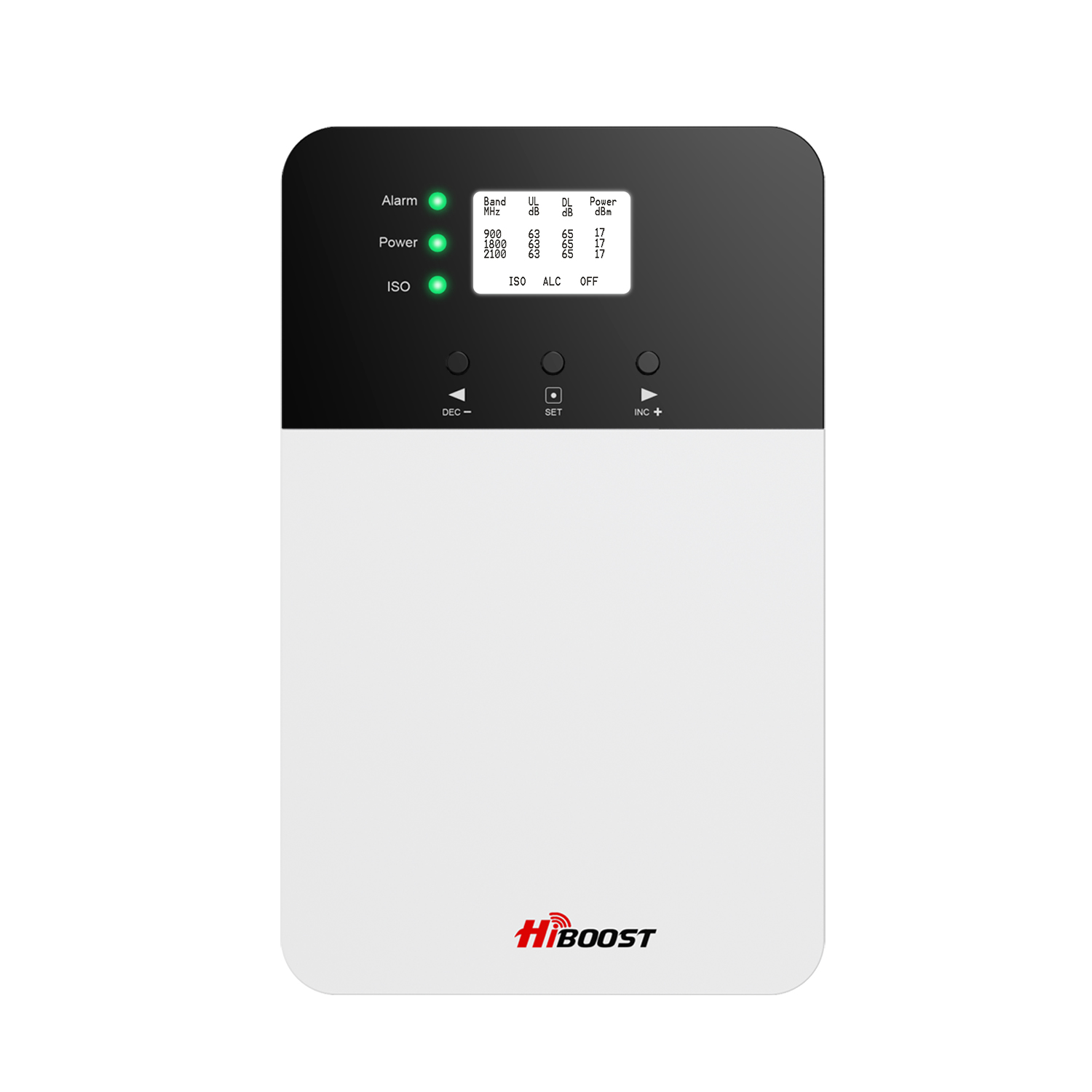

تقویت کننده سیگنال موبایل Hi17-EDW

Name: تقویت کننده سیگنال موبایل Hi17-EDW
Brand: های بوست
Price: 0٫0000 IRR
Availability: OutOfStock

Networks: EGSM900, DCS1800,WCDMA2100 MHz

Coverage : up to 1000-1800 square meters

Technology:2G/3G/4G/LTE

Max.Gain:65 dB

Easy to install and monitor via HiBoost App

Inbuilt indoor antenna

Compliant with CE RED

برند تجاری: های بوست

0٬000 تومان

مشخصات محصول

نام ویژگی	مقدار ویژگی
WORKING BANDS	900, 1800, 2100 MHz
UL FREQUENCY RANGE	880-915 /1710-1785 /1920-1980 MHz
DL FREQUENCY RANGE	925-960 /1805-1880 /2110-2170 MHz
SUPPORTED STANDARDS	EGSM, DCS, WCDMA
V.S.W.R	Typical≤2
MAXIMUM GAIN	65 db
MGC (STEP ATTENUATION)	≥ 31 db/ 1 db step
INTELLIGENT AGC	ALC ≥42dB ISO ≥42dB
GAIN FLATNESS	Typical≤5dB (p-p)
NOISE FIGURE @ MAX. SYSTEM GAIN	Typical≤5dB
GROUP DELAY	≤1μs
FREQUENCY STABILITY	≤0.01ppm
POWER SUPPLY	Input AC 100~264 V, 50/60 Hz, Output DC 12V/3A
POWER CONSUMPTION	≤12W
IMPEDANCE	50 ohm
LCD DISPLAY	Frequency, Gain, Output Power, ALC, ISO indicators
I/O PORT	N-Female
DIMENSIONS	153 mm×246 mm×36 mm/ 6 in×9.7 in ×1.4 in
BOOSTER WEIGHT	≤3.97lbs/1.8KG
BOOSTER KIT WEIGHT	5 KG
OPERATING TEMPERATURE	-10ºC~+55ºC
STORAGE TEMPERATURE	-10ºC~+80ºC
RELATIVE HUMIDITY	5% – 95%
BAROMETRIC PRESSURE	55 kPa -106 kPa
ENVIRONMENT CONDITION	IP40
MAX. OUTPUT POWER	17dBm
